This project shows how the camera settings for this camera are adjusted using a mobile-responsive web page and then passed via JavaScript and WebSockets to a daemon written in C++ and then picked-up again by the camera. The settings themselves are described below in Interface Definition Language (IDL).

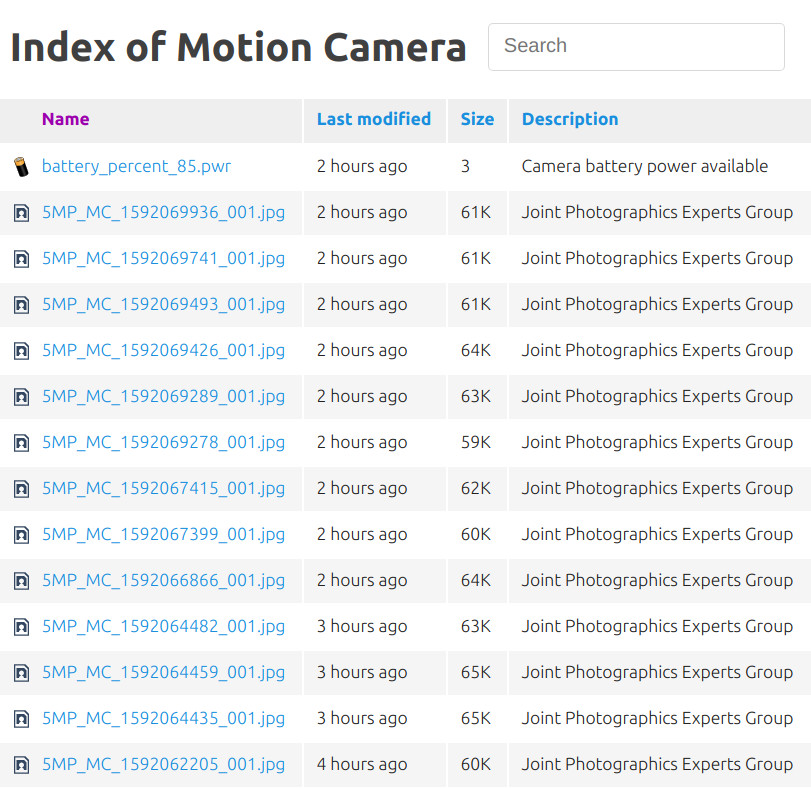

image browsing page

Interface Definition Language (IDL) for Motion Camera Settings

// IDL for Motion Camera Settings.
namespace OV5642_Settings;
table Settings {
    jpeg_size:uint8;
    quality:uint8;
    frames:uint8;
    light_mode:uint8;
    color_saturation:uint8;
    brightness:uint8;
    contrast:uint8;
    hue:uint8;
    effect:uint8;
    exposure:uint8;
    sharpness:uint8;
    mirror:uint8;
    test_pattern:uint8;
}
root_type Settings;

If you plan to make changes to the IDL copy the above into a file named motion_camera_settings.fbs and follow the examples below. For more information about FLatBuffers see the reademe.md.

Generating motion_camera_settings_generated.h

./flatc --cpp --force-empty --force-empty-vectors --gen-mutable -o interface/ motion_camera_settings.fbs

Generating motion_camera_settings_generated.js

./flatc --js --force-empty --force-empty-vectors -o interface/ motion_camera_settings.fbs

This camera project includes a trivial fork of the Google FlatBuffers project. I had to make one or two tiny changes in capitalization to get the project to compile in my case-sensitive operating system.

Building

Install libpoco on Raspbian Buster
sudo apt-get install libpoco-dev libpoco-doc libpocofoundation60 \
libpocojson60 libpoconet60 libpococrypto60 libpocodata60 \
libpocodatamysql60 libpocodataodbc60 libpocodatasqlite60 \
libpocoencodings60 libpocomongodb60 libpoconetssl60 libpocoredis60 \
libpocoutil60 libpocoxml60 libpocozip60
Run cmake in the usual way in the project root folder.

Installing as a System Service (daemon)

-1. Make a directory named camera_settings in your home directory.

-2. Copy the contents of the run directory from this project into it.

-3. Edit camera_settings.service to reflect your username, group, and the path to your home directory. Hint: read the comments.

-4. As root, copy camera_settings.service to /etc/systemd/system and enable the service:

sudo systemctl enable camera_settings.service

Created symlink /etc/systemd/system/multi-user.target.wants/camera_settings.service → /etc/systemd/system/camera_settings.service.

-5. Start the new service and check it's status.

sudo systemctl start camera_settings
sudo systemctl status camera_settings
● camera_settings.service - 5MP Camera Settings Service
   Loaded: loaded (/etc/systemd/system/camera_settings.service; enabled; vendor preset: enabled)
   Active: active (exited) since Tue 2020-06-16 15:08:35 EDT; 8min ago
  Process: 3578 ExecStart=/home/patrick/camera_settings/camera_settings --daemon --pidfile camera_settings.pid (code=exited, status=0/SUCCES
 Main PID: 3578 (code=exited, status=0/SUCCESS)
    Tasks: 4 (limit: 4915)
   Memory: 996.0K
   CGroup: /system.slice/camera_settings.service
           └─3582 /home/patrick/camera_settings/camera_settings --daemon --pidfile camera_settings.pid
Jun 16 15:08:35 raspi4 systemd[1]: Started 5MP Camera Settings Service.

-6. Edit camera_settings.properties in $HOME/camera_settings and change path for the default_buffer and new_buffer properties to reflect your home directory path. While you're in there you can change the WebSocket port if desired. If you do, be sure to reflect the change in the platformio.ini for the camera. Change SOCKET_PORT to the same number.

WebSocketServer.port: 8880
WebSocketServer.default_buffer: /home/patrick/camera_settings/default_buffer.bin
WebSocketServer.new_buffer: /home/patrick/camera_settings/new_buffer.bin

Resources

The camera_settings binary has the ability to verify and compare the default and new buffers and report validity, matches and differences. This is helpful as a way to test that the web application is working as expected. In the following sample both buffers are valid but the frames setting has been incremented in the new buffer so they don't match.

./camera_settings --compare
Comparing: /home/patrick/camera_settings/default_buffer.bin, /home/patrick/camera_settings/new_buffer.bin
flatbuffers::VerifySettingsBuffer PASSED for default_buffer.bin
flatbuffers::VerifySettingsBuffer PASSED for new_buffer.bin
key               default   new       match
-------------------------------------------
jpeg_size         0         0         true
quality           1         1         true
frames            0         1         false
light_mode        0         0         true
color_saturation  4         4         true
brightness        4         4         true
effect            7         7         true
contrast          4         4         true
hue               6         6         true
exposure          5         5         true
sharpness         0         0         true
mirror            7         7         true
test_pattern      7         7         true
Compare result: buffers DO NOT match.

Credits

Thank you to obiltschnig and the Poco Project Team for providing the example and library code from which the WebSocket server in this project is built.
Thank you to the FlatBuffer contributors for the Google FlatBuffer project.
Thank you to Vestride for the Fancy Index project from which I built the web page in this project.
